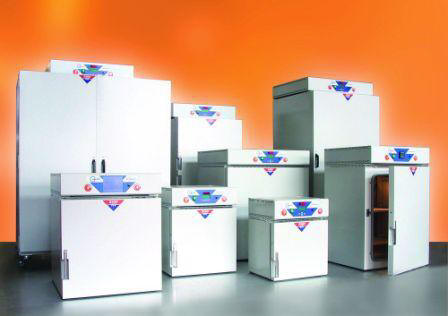

High Performance Ovens

G-2100

















      +300C















Choice between 8 Volumes  30 64 100 180 250 432 720 L

 Gravity Air or Forced Air Convection

Easy to use, powerful, reliable and safe.

New design with compact body space-saving.

Height adjustable feets for bench top models, Lockable castors for floor models.

Environment friendly materials, all components can be recycled.

High quality insulation : cool outer surface and low energy consumption.

Door with adjustable locks and Hinges complete with Silicone door gasket.

Stainless Steel AISI 304 working chamber with rounded corners, easy to clean.

N 02 Height adjustable shelves, removable.

Excellent temperature uniformity and stability

Stainless Steel armoured heaters well engineered.

Pre-heated fresh air input + Special shaped inner wall system + Air flap exhaust control.



Advanced Galli System :  Daily Pro - Talent



  AG-System DAILY

Main switch + Fuses

Microprocesser Control PID Digital with Autotuning

Double Display to show Set Point temperature and Actual inner Temperature

Platinum probe PT100 Class A

Solid State Relay  "Zero Crossing" low noice

Safety Device selectable and indipendent  Classe 3.1

Calibrable in 2 point + Offset function

Timer 99h 59m

Double Set point programmable

Serial RS232 interface



AG-System PRO



Main switch + Fuses

Microprocesser Control PID Digital with Autotuning

Programmable 4 x 16 steps

LED Display shows Actual inner Temperature

LCD Display show message and all other functions.

per visualizzare la temperatura impostata (set point) e tutte le altre funzioni.

Platinum probe PT100 Class A

Solid State Relay  "Zero Crossing" low noice

Safety Device selectable and indipendent  Classe 3.1

Calibrable in 4 point + Offset function

Timer 99h 59m

Calibrable in 4 point + Offset function

Seriale RS232

Air Speed regulation



AG-System TALENT



Main switch + Fuses

Microprocesser Control PID Digital with Autotuning

Programmable 4 x 16 steps

Graphical Display with Touch Screen shows all informations

Platinum probe PT100 Class A

Solid State Relay  "Zero Crossing" low noice

Safety Device selectable and indipendent  Classe 3.1

Calibrable in 4 point + Offset function

Timer 99h 59m

Calibrable in 4 point + Offset function

Seriale RS232

Air Speed regulation

Graphical temperature recording system



Main Features
