High Temperature

Forced Air Ovens

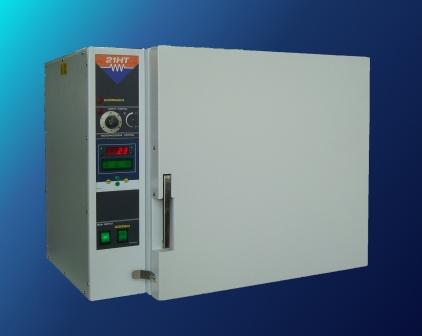

G-21HT













+ 500C

 Stainless Steel Chamber











Choice between 2 Volumes  40 e 100 L

Easy to use, powerful, reliable and safe.

New design with compact body space-saving.

Electrical panel on side to avoid the temperature.

Height adjustable feets for leveling.

Environment friendly materials, all components can be recycled.

Triple high quality insulation : cool outer surface and low energy consumption.

Door with adjustable locks and Hinges.

Double door gasket Silicone + Glass braid.

MicroSwitch on door opening.

Double Stainless Steel chamber.

N 02 Height adjustable shelves, removable.

Excellent temperature uniformity and stability

Stainless Steel armoured heaters well engineered.

Cooled external motor for forced air circulation

Air flap exhaust control.



Advanced Galli System :  Daily Pro

  AG-System DAILY

Main switch + Fuses

Microprocesser Control PID Digital with Autotuning

Double Display to show Set Point temperature and Actual inner Temperature

Platinum probe PT100 Class A

Solid State Relay  "Zero Crossing" low noice

Safety Device selectable and indipendent  Classe 3.1

Calibrable in 2 point + Offset function

Timer 99h 59m

Double Set point programmable

Serial RS232 interface



AG-System PRO



Main switch + Fuses

Microprocesser Control PID Digital with Autotuning

Programmable 4 x 16 steps

LED Display shows Actual inner Temperature

LCD Display show message and all other functions.

per visualizzare la temperatura impostata (set point) e tutte le altre funzioni.

Platinum probe PT100 Class A

Solid State Relay  "Zero Crossing" low noice

Safety Device selectable and indipendent  Classe 3.1

Calibrable in 4 point + Offset function

Timer 99h 59m

Calibrable in 4 point + Offset function

Seriale RS232

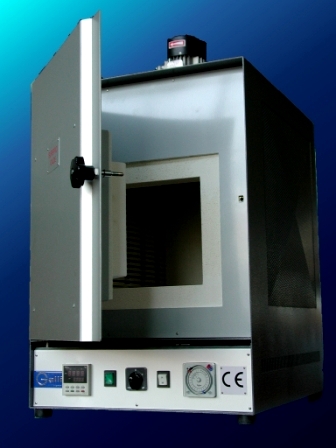

+ 750C

Refractory fire bricks Chamber

Table top

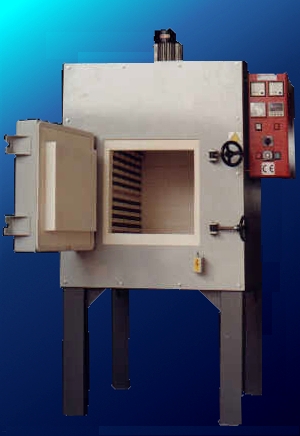

+ 750C

Refractory fire bricks Chamber

Floor Model









Choice between 2 models : Table top or Floor Model

Easy to use, powerful, reliable and safe.

Compact body space-saving.

Electrical panel on side or on bottom to avoid the temperature.

Environment friendly materials, all components can be recycled.

High quality insulation with Refractory fire bricks

Door with adjustable locks.

Door gasket Glass braid.

MicroSwitch on door opening.

Excellent temperature uniformity and stability

Nikel Crome heaters well engineered.

Cooled external motor for forced air circulation

Exhaust tube.



Custom Galli Control

Main Switch + Fuses

Microprocessor PID Digital Autotuning Control + Termocouple K

Safety themostat. + Timer

Calibration function 1 point

Power Supply 400V 3Phase +N 50Hz
