High Performance

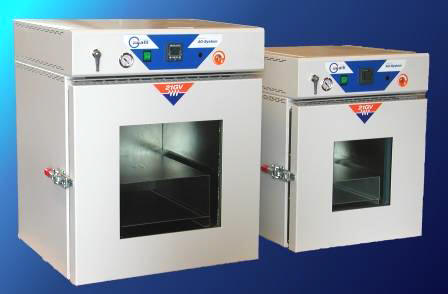

Vacuum Ovens

21GV













     +200C













Choice between 4 Volumes  20 50 110 220 L

Easy to use, powerful, reliable and safe.

New design with compact body space-saving.

Height adjustable feets for bench top models.

Environment friendly materials, all components can be recycled.

High quality insulation : cool outer surface and low energy consumption.

Door with adjustable locks and Hinges complete with Silicone door gasket.

Safety anti-pressure chamber spring system

Temperated full view window.

Stainless Steel AISI 304 working chamber with rounded corners, easy to clean.

N 02 Shelves, removable.

Excellent temperature uniformity and stability

Stainless Steel armoured heaters well engineered.

Tap valve to control the air and the vacuum.



Advanced Galli System :  Daily Pro - Talent

  AG-System DAILY

Main switch + Fuses

Microprocesser Control PID Digital with Autotuning

Double Display to show Set Point temperature and Actual inner Temperature

Platinum probe PT100 Class A

Solid State Relay  "Zero Crossing" low noice

Safety Device selectable and indipendent  Classe 3.1

Calibrable in 2 point + Offset function

Timer 99h 59m

Double Set point programmable

Serial RS232 interface



AG-System PRO



IMain switch + Fuses

Microprocesser Control PID Digital with Autotuning

Programmable 4 x 16 steps

LED Display shows Actual inner Temperature

LCD Display show message and all other functions.

per visualizzare la temperatura impostata (set point) e tutte le altre funzioni.

Platinum probe PT100 Class A

Solid State Relay  "Zero Crossing" low noice

Safety Device selectable and indipendent  Classe 3.1

Calibrable in 4 point + Offset function

Timer 99h 59m

Calibrable in 4 point + Offset function

Seriale RS232



AG-System TALENT

Main switch + Fuses

Microprocesser Control PID Digital with Autotuning

Programmable 4 x 16 steps

Graphical Display with Touch Screen shows all informations

Platinum probe PT100 Class A

Solid State Relay  "Zero Crossing" low noice

Safety Device selectable and indipendent  Classe 3.1

Calibrable in 4 point + Offset function

Timer 99h 59m

Calibrable in 4 point + Offset function

Seriale RS232

Air Speed regulation

Graphical temperature recording system



Main Features
