MOD. 40-70


Technical Features
Mod. 40 With Separate Tank
  • Steel outer casing, stove enamelled with epoxy colours
  • Separate tanks, concentric rings and rods made of SS AISI 304
  • Heating provided by surface heaters
  • Constant level regulator
  • Sliding clamps for glasswre
  • Separate energy regulator, SIMMERSTAT, for each place
  • Electrical parts in according to current safety standard including: Fuses, warning light, supply cable
  • Temperature range from +5C above ambient to +100C
  • Instruction for use and wiring diagram
  • All units are individually checked and tested
  • Electrical supply 220 V 1 phase 50 Hz

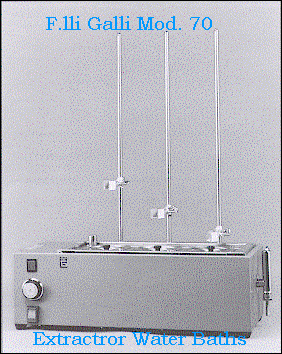

Mod. 70 With Single Tank
  • Steel outer casing, stove enamelled with epoxy colours
  • Single tank, cover with concentric rings and rods made of SS AISI 304
  • High efficiency thermal insulation, no abestos used
  • Heating provided by armored immersion heaters
  • Sliding clamps for glasswre
  • Electrical parts in according to current safety standard including: Fuses, main switch, precision fluid-expansion, THERMOREGULATOR, warning lights and supply cable
  • Control thermometer
  • Temperature range from +5C above ambient to +100C
  • Instruction for use and wiring diagram
  • All units are individually checked and tested
  • Electrical supply 220 V 1 phase 50 Hz



Code

Places Dimensions mm Power W Weight Kg.
    Internal - Ext
BE400001SM 1 diam 120x H100 - 210x250x190 350 4
BE400001SM 1 diam 120x H100 - 210x250x190 350 4
BE400002SM 2 diam 120x H100 - 390x250x190 700 7
BE400003SM 3 diam 120x H100 - 570x250x190 1050 10
BE400004SM 4 diam 120x H100 - 750x250x190 1400 13
BE400006SM 6 diam 120x H100 - 1100x250x190 2100 19
BE700002TO 2 290x150x110 - 470x230x210 800 10
BE700003TO 3 430x150x110 - 600x230x210 1000 13
BE700004TO 4 560x150x110 - 750x230x210 1500 15
BE700006TO 6 800x150x110 - 990x230x210 2000 18
