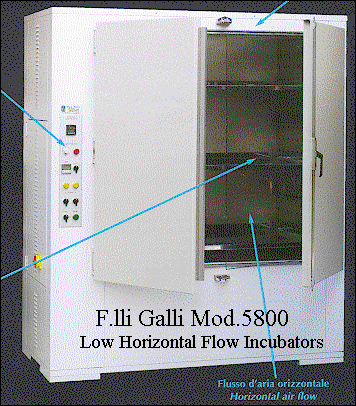

MOD.5800


Technical Features
  • Steel outer casing, stove enamelled with epoxy colours
  • Three walls type, with latet high insulated, no asbestos used
  • Inner chamber made of Stainless Steel AISI 304 high corrosion resistent type
  • Tight, dispersion-proof outer door with silicone rubber gasket and lever lock.
  • Inner glass door for visual control of samples without disturbing the chamber temperature
  • Special long shaft motor coupled to a centrifugal fan
  • LOW HORIZONTAL AIR-Flow: uniform temperature along all points of the working chamber
  • Heating achieved by a buttery of armored heaters SS AISI 304, easy ispection
  • Vents are provided to obtain natural air circulation or recharge
  • N03 perfored height-adjustable shelves
  • Side mounting of the control panel protects the control against spillage and rising heat
  • Fuses
  • Mains switch
  • Contactors
  • Warning lights
  • PID digital thermoregulator
  • PT100 probe,
  • "zero-crossing" solid state relays
  • Safety indipendent thermoregulator
  • Temperature range from +5C above ambient to +70C (0.5C)
  • Accuracy: at 37C 0.3C
  • Uniformity: at 37C 1.5C
  • All the units are individually checked and tested
  • Instructions for use and wiring diagram
  • Conformity to CEI 66-5 EN 61010-1
  • Electrical supply 220 V 1 phase 50 Hz

OPTIONALS

  • OP140X5800 Multiscale electronic timer
  • OP111X5800 Micropr. programmer PID, PT100, 11 segments
  • OP119X5800 Micropr. programmer PID, PT100, 19 segments
  • OP170X5800 Graphic recorder with PT100
  • OP625X5800 SS extra shelf width "60"
  • OP625X5800 SS extra shelf width "70"
  • OP635X5800 SS extra shelf width "100"
  • OP645X5800 SS extra shelf width "120"
  • OP720X5800 Chimney with flap
  • OP750X5800 Exhaust fan
  • OP730X5800 Window (for door)
  • OP710X5800 Internal light (2 lamp)
  • OP740X5800 Decontamination system
  • OP760X5800 Air inlet filter
  • OP780X5800 Through hole



CODE Int. Dim.
(wxdxh) mm
Ext. Dim.
(wxdxh) mm
Volume Power Weight Packing Dim.
(w x d x h) mm
T5800306DS 600x600x850 1050x710x1510 306 lt. 1000 W 200 Kg. 1200x800x1700
T5800504DS 700x600x1200 1150x710x1860 504 lt. 1500 W 250 Kg. 1300x800x2000
T5800840DS 1000x700x1200 1450x810x1860 840 lt. 1800 W 300 Kg. 1600x900x2050
T5801008DS 1200x700x1200 1650x810x1860 1008 lt. 2000 W 350 Kg. 1800x900x2050
